TECHNISCHE MERKMALE

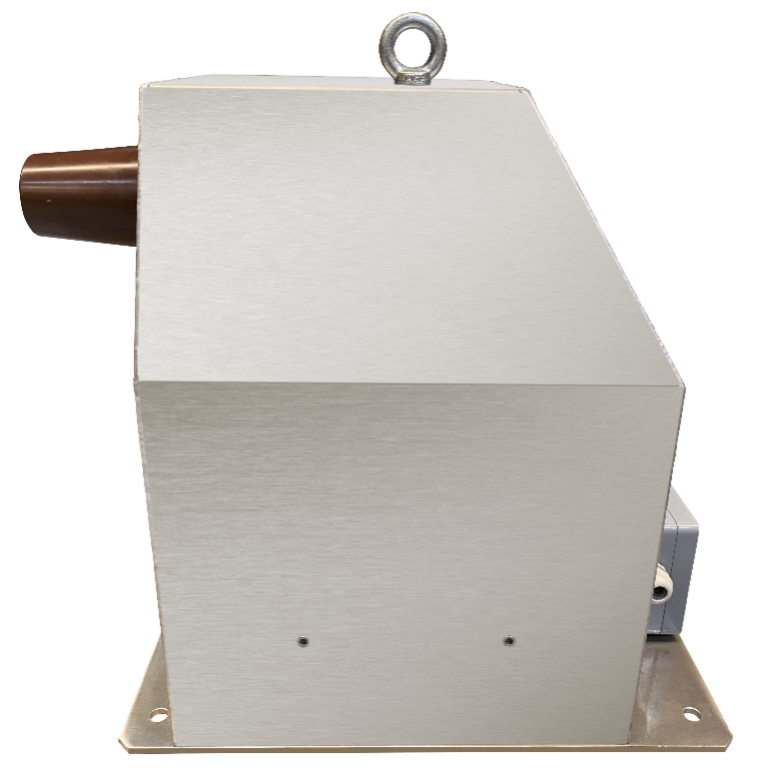

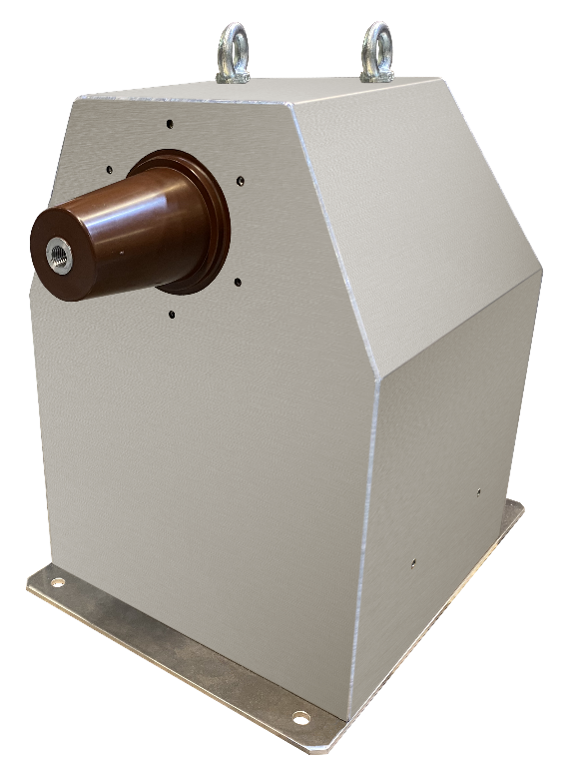

Datasheet: VT (conventionell) GBEA 72,5
Insulation level: 72,5 / 140/ 325
Rated frequency: 50 Hz/ 60 Hz
Rated voltage: Max. 66 kV/ v3
Rated secondary voltage: 100 V/ v3 or 110 V/ v3
IEC-Standard: IEC61869-3
Rated accurary class: 0.2/ 0.5/ 1/ 3P/ 6P
Rated output burden 25 VA (0.2)/ 75 VA (0.5)
External condition, Operation: -25 C to +40 C or -40 C to + 40 C
External condition, Storage: -40 C to + 80 C
Secondary Terminal Box, M6
HV connection: Via HV- cable connection, acc. EN50673 size F
